Hybrid system(Lego type)
Hybrid electric vehicle system to make by yourself
It is possible to combine freely.
 |
■ The order number and the product name:
V600e-RHV Hybrid system(Lego type)
■ The product description:
It makes various kind of hybrid systems with combining with the hybrid system kit (Lego type) by yourself, dividing the structural-part of the hybrid car of the various kind and they can be operated.
It connects the fellow of the cluttered engine compartment, and the electromotor, the model that equal の operates with the connector, it fixes it on the setting panel only with the securing pin and it is a hybrid system.
The operation model of five kinds, one kind of EVs can be created.
The construction is simple!
1. It connects a connector for the joint.
2.It is completion if adjusting the hole of the part and the hole of the setting panel and insertinga securing pin.
The various hybrid and the operation of the system can reappear in combining by itself! It is possible for the various hybrid system to reappear, too, because it is possible to connect in many degree! Pin for the revolution is installed in the cluttered engine compartment and the electromotor.
The wheel can be turned, too, and the system of the regeneration brake, too, can be easily understood.
The motive power division mechanism adopts a planetary gear, as for the output, it uses a planetary gear for reduction gear of two stages of compatible, too, and 2 systems of the front engine rear drive method front engine front drive method can reproduce an increase of value and a deceleration by the replacement of the chain-pin.
It is possible for the conclusion and the cancellation to reappear by the replacement of the chain-pin about the clutch mechanism, too.
The size and the weight: 330 x 630 x 450 mm12 kg ( It includes a container case ).
Teaching materials can buy one part.
■The part list
■ The order number and the product name:

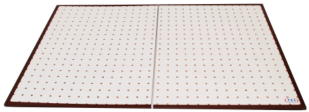

V651e-STP The setting panel
■ The product description:
It sets parts in this panel respectively.
It is one set, two sheets.
The size: 20 x 375×500 mm
The weight: 1.4 kg
■ The order number and the product name:
V665e-CNT Container case
■ The product description:
It is a container case for the storage.
V600-RHV The hybrid system kit (Lego type) is included as standard equipment.
The size: 340 x 630×450mm
The weight: 3.2 kg
■ The order number and the product name:
V652e-ENG Engine compartment
■ The product description:
It operates with the handwheel which was prepared for the brake-bell-crank.
The basics on the cluttered engine compartment can be learned.
The size: 220 mm x 160×125
The weight:1 kg
■ The order number and the product name:
V653e-MOT Electromotor
■ The product description:
It has been cut in the electromotor of the real thing.
The distributor rotor and the stator-coil and so on can be seen.
The handle turns.
The size: 130 mm x 160×190
The weight: 1 kg
■ The order number and the product name:
V655e-WHL Wheel
■ The product description:
It is a driving wheel.
The explanation of the regeneration brake is made if turning a tyre and turning a generator and an electromotor.
The size: 180×150×130㎜
The weight: 850 g
■ The order number and the product name:
V654e-GNR The generator
■ product description: There is not an electric feature.
The size: 130 mm x 90×90
The weight: 200 g
■ The order number and the product name:
V658e-CLT Clutch
■ product description:
It is possible to make the turning effect of engine and the electromotor continue intermittently optionally.
The size: 140 mm x 140×200
The weight :850 g
■ The order number and the product name:
V659e-PTR The power division mechanism
■ The product description:
It has the feature to make divide into the system to drive the course for the wheel to drive the power of the engine and the generator to make drive and to generate electricity.
The size: 160 x 140×200mm
The weight: 850 g
■ The order number and the product name:
V660e-RDG Two stages of reduction gears
■ The product description:
It has the function to let it decelerate before telling the revolution of the electromotor to the axle and to make a big torque occur.
The size: 160 × 160×140mm
The weight: 750 g
■ The order number and the product name:
V656e-INV Inverter
■ The product description:
There is not an electric feature.
The size: 120 × 70 × 60 ㎜
The weight: 300 g
■ The order number and the product name:
V657-BTR Battery
■ The product description:
There is not an electric feature.
The size: 120 × 70 × 80 ㎜
The weight: 300 g
Let's attempt to assemble a variety of hybridelectric vehiclesystemusing above-mentioned parts.
■ The order number and the product name:

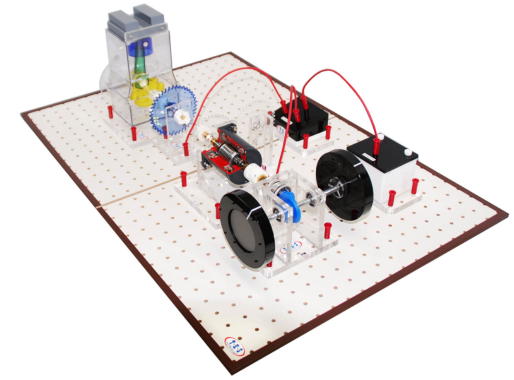

V610e-STC Type of Toyota coaster type
■ The product description:
The use parts
V651-STP Two sheets of setting panels
V652-ENG One cluttered engine compartment
V653-MOT One electromotor
V654-GNR One generator
One V655-WHL wheel
V656-INV One inverter
V657-BTR One battery
■ The order number and the product name:

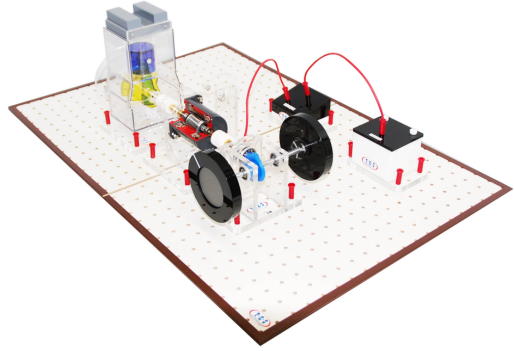

V615e-SHD Type of Honda IMA (Parallel)
■ The product description:
The use parts
V651-STP Two sheets of setting panels
V652-ENG One cluttered engine compartment
V653-MOT One electromotor
One V655-WHL wheel
V656-INV One inverter
V657-BTR One battery
■ The order number and the product name:

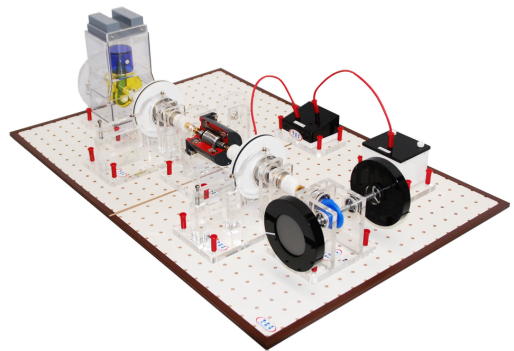

V620e-PNF The parallel method of Nissan Fugue
■ The product description:
The use parts
V651-STP Two sheets of setting panels
V652-ENG One cluttered engine compartment
V653-MOT One electromotor
V658-CLT Two clutches
One V655-WHL wheel
V656-INV One inverter
V657-BTR One battery
■ The order number and the product name:

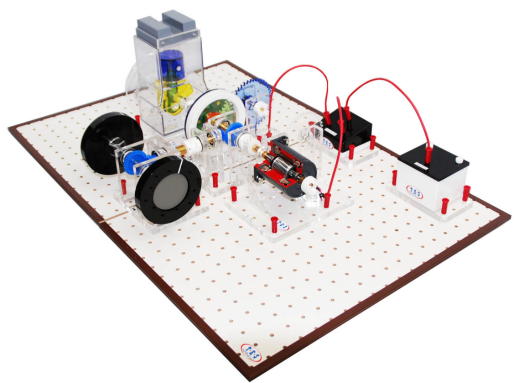

V625e-STR Split method of Toyota Prius
■ The product description:
The use parts
V651-STP Two sheets of setting panels
V652-ENG One cluttered engine compartment
V653-MOT One electromotor
One V655-WHL wheel
One V659-PTR motive power division mechanism V654-GNR One generator
V656-INV One inverter
V657-BTR One battery
■ The order number and the product name:
V630e-STL The split method of Lexus H450 type
■ The product description:
The use parts
V651-STP Two sheets of setting panels
V652-ENG One cluttered engine compartment
V653-MOT One electromotor
One V655-WHL wheel
One V659-PTR motive power division mechanism V654-GNR One generator
リダクションギヤ of two stages of V660-RDG
V656-INV One inverter
V657-BTR One battery
■ The order number and the product name:

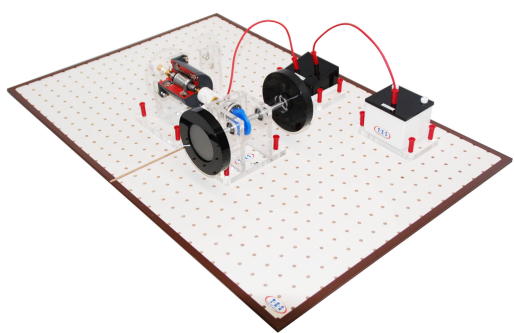

V635e-EMV Electric-automobile
■ The product description:
The use parts
V651-STP Two sheets of setting panels V653-MOT One one electromotor V655-WHL wheel V656-INV One inverter
V657-BTR One battery

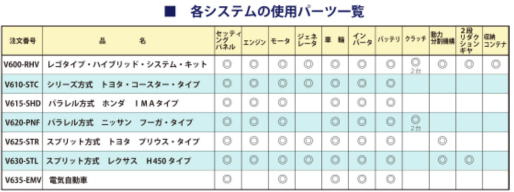

It is the use part list of each system.
