Hybrid system( FR )
 |
■The order number and the product name:

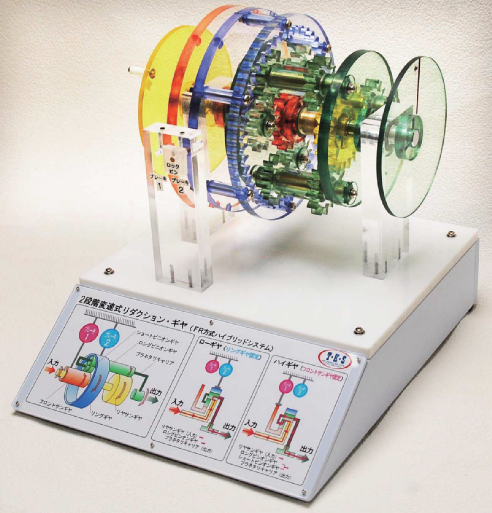

V510e-HBR Hybrid electric vehicle model (FR)
2 step converter-drive-position type reduction gear
■ The product description:
The hybrid system which is used for the front engine rear drive mode in addition to the front engine front drive mode, too
It is the 2 step converter-drive-position type reduction gear mock-up which is used for the front engine rear drive type.
Two stages of converter-drive-position type reduction gears function as the reducer to make a big brake torque occur to, to let it decelerate before telling the revolution of the motor to the axle.
In this, with the electronic control, in the gear of " Lo " and two " Hi ", it realizes the powerful and smooth acceleration by answering a flow-phase and changing automatically and controlling a motor from the lay-a-patch to the most fast speed, being best.
It is possible to watch in the actuation situation of " Lo " and " Hi " with the horsepower-output plate in using a lock-pin and turning this 2 step converter-drive-position type reduction gear with the input handle at the mock-up.
The size and the weight: 320 x 300×360 mm 7.5 Kg
