Hybrid system



■ The order number and the product name:
V501e-HBD Hybrid system

■ The product description:
of the parallel series hybrid system which Toyota's Prius uses

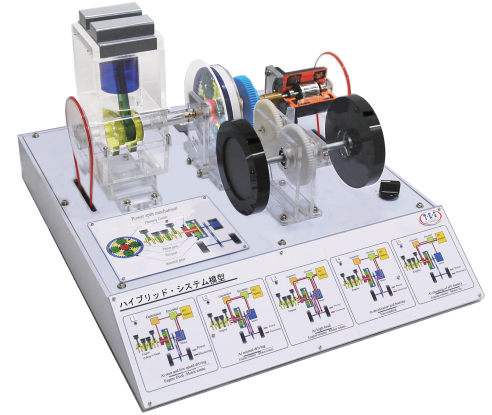

It is possible to understand in the easiness of thing で ( by the input of the cluttered engine compartment electromotor and the combination of the tie-down ) which moves this hybrid system with the hand in the one which made a solid mock-up while seeing a description board at the front face.
1. The time of the lay-a-patch and the low-speed transit-time
→ It stops a cluttered engine compartment and it runs only with the electromotor ( As for the cluttered engine compartment, the tie-down, the electromotor turn ).
2. It divides the motive power of the general transit-time → cluttered engine compartment into the actuation of the electric power generation and the travelling wheel, it drives an electromotor at the electric power to have generated electricity and it helps the driving force of the travelling wheel.
( Cluttered engine compartment revolution, the electromotor revolution ( slow ) )
3. It divides the motive power of the → cluttered engine compartment in case of high-load into the actuation of the electric power generation and the travelling wheel, the electric power is supplied from the electric power and the HV battery to have generated electricity, too, drives an electromotor and increases the driving force of the travelling wheel.
( Cluttered engine compartment revolution, the electromotor revolution )
4. The electromotor acts as the generator in the case of the → deceleration and at the time of the braking in the case of the deceleration and at the time of the braking and does a coming back to life electric power generation and stores up the energy at the battery.
( It turns a pneumatic rubber tyre ).
5. Make a general transit-time increase the horsepower-output of the cluttered engine compartment when the charged ampere-hour of the → HV battery becomes below the constant value at the time of the HV battery charge and it charges in the HV battery.
( The cluttered engine compartment fixes a revolution, an electromotor ).

The size and the weight: 340  x 420 x 480 mm  6 kg
