6 cylinder 4 cycle gasoline engine
 |
■ The order number and the product name:

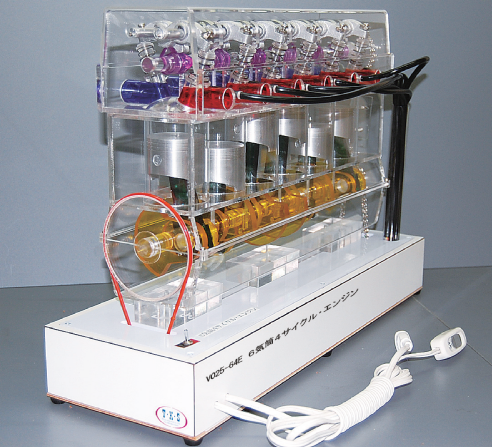

V025e-64E 6 cylinders 4 cycle engine model
■ The product description:
It is the solid model of the 6 cylinder four cycle and the cluttered engine compartment.
This cluttered engine compartment model can observe the operation of the opening and shutting of the function valve of the contact-breaker-cam inside, the piston, the brake-bell-crank and so on from any angle of 360 degrees because of the one where a distributor-body brake shield, front part is made from transparent acrylic fiber.
The operation can do operation, a stoppage freely at one switch.
It gets to do the can to watch the status of each intercylinder brake shield, front part of which because this 6 cylinder four cycle and the cluttered engine compartment are the model which was composed as the multiple-cylinder-engine and a LED is installed in 1 cylinder for each at 4 journeys of the " inhalation " " compression " " explosion " " exhaust ".
Size and the weight: 340 x 360x180 mm 5 kg
Electric-source: 100 V (The power can be changed.) Two double A batteries
