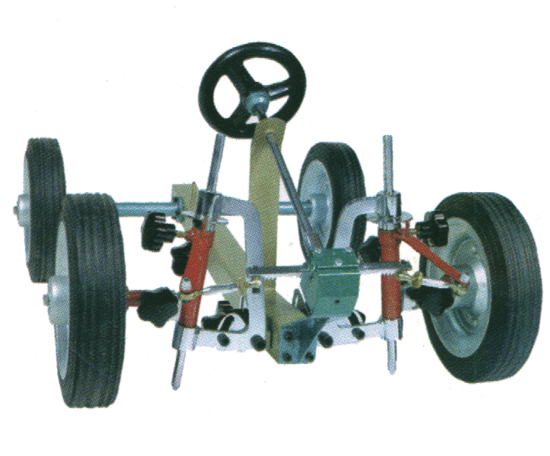

Front-wheel alignment simulator

■ The order number  the product name:

S141-775  The front-wheel alignment simulator

■ The product description:

This simulator is the simulator to learn the driving gear of the auto car by the experiment using the model car.
The simulation contents:
1. The Rudolph Ackermann junta mechanism
2. The camber
3. The king-pin-inclination
4. The axle-pin rake
5. The toe-in length
6. The toe-out
It is possible to be understood by changing the position and the angle of the chain-pin and making run a model car actually by these contents.

The size and the weight: 450 x 850 x 650 mm
The weight: 15 Kg
