2 cycle engine
 |
■ The order number and the product name:

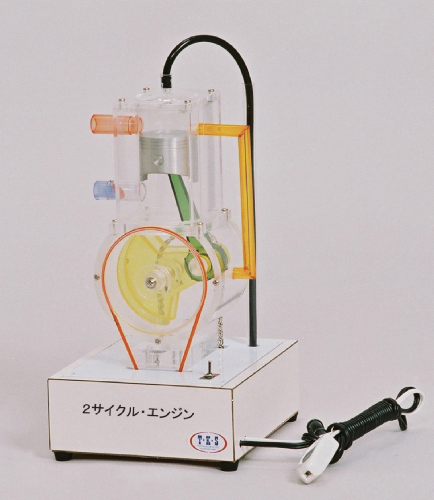

V015e-TCE 2 cycle engine
■ The product description:
The journey of the " scavenging " " compression " " explosion " " exhaust " which is the basic action of the 2 cycle gasoline engine changes in the motor drive.
It is reproduced with the cluttered engine compartment.
It uses a metal component for the piston and the valve and so on and it is made the finish which is nearer the cluttered engine compartment of the real thing.
This cluttered engine compartment model can observe the operation of the piston brake-bell-crank inside and so on from 360 degrees, any angle because of the one where a distributor-body brake shield, front part is made from transparent acrylic fiber.
Also, the operation can do operation and a stoppage freely at one switch.
This equipment
The LED ( green, the blue, red, the orange ) to have supported each at the journey which is intake, a compression, an explosion, an exhaust lights up and lights up the inside of the cluttered engine compartment.
It is possible to watch which status the present cluttered engine compartment journey is with this.
The size and the weight: 340 x 160×180 mm 3㎏
The electric-source: 100 V AC ( For the LED The two double-A-battery use )
