Full-automatic planetary gear
 |
■ The order number and the product name:

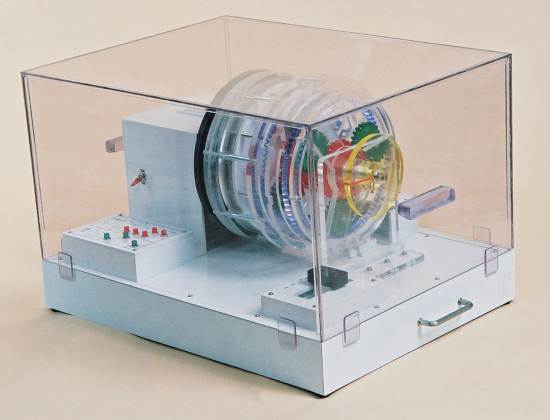

P001e-MDP Full-automatic planetary gear model
■ The product description:
It operates an acceptance change-speed-lever only, the switch operates by two sets of simple type planetary gears and it is possible to do reappearance in the change of the planetary gear unit of forward movement 3 speed, reverse.1st.
Also, it is both one on the side of the front, the rear side in each shift range ( R, P, N, D1, D2, D3 ).
By that the condition which a gear ( the sun gear, the internal gear, the luggage carrier ) was fixed on or the condition of the entry is lit up by the operation table ramp, the mechanism can be at a glance understood.
The size and the weight: 500x450 x 420mm 20 Kg
Power supply : 220V or 100V
