Starter system simulator



■ The order number and theproduct name:

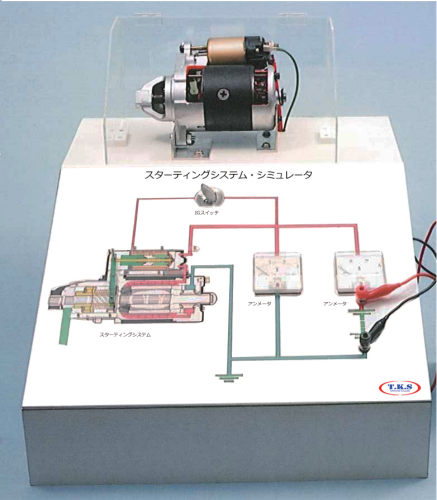

S031e-STS Starter system simulator

■ The product description:
It is the simulator who can learn the electromagnetic sliding-type cranking-motor of the cut real thing while experimenting on the structure and the feature of the envoy cranking-motor.
The cranking-motor operates when making an ignition switch on.
Because an ammeter, a voltmeter are embedded in the cranking-motor and the system chart in the front panel brake shield, front part, the change of the electric current, the voltage in various experiment can be observed.
It is possible to do the following experiment while operating an installed brake.
* It is possible to do the practice of the following diagnosis of fault because a various jam switch is incorporated inside the characteristic test body in case of characteristic test * restriction in case of the no-load characteristic test * load.
* In the accidental cut * pull-in-coil by the battery main line In addition to accidental cut * Maine contact-breaker-points bad * short

The size and the weight:  550x660x630 mm   30 kg
The electric-source:100V AC or 220V
