Teaching materials for relay circuit
   |
■ The order number and the product name:

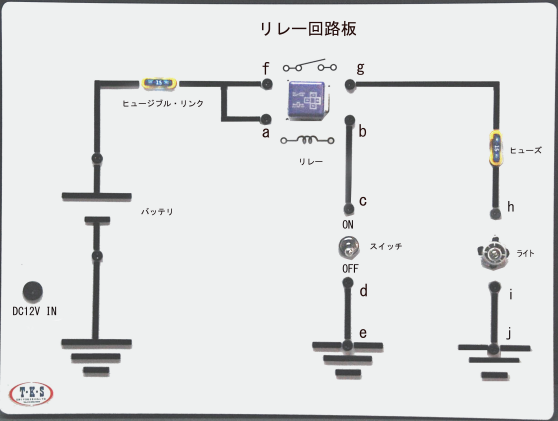

E002e-REC Teaching materials for relay circuit
■ The product description:
In the next-generation auto cars such as the hybrid electric vehicle, the electric circuit becomes indispensable existence.
The relay circuit which was installed in the automatic car interior as the basic knowledge of the relay circuit of this relay circuit board simulates in what condition the poor-contact and so on occur fully!!.
It is scalableness in the voltage to use a tester ( available separately ) and to measure the voltage of each part and to be splashed on the relay and so on!! The suspected jam can be caused using the crash electric switch and the variable resistance which was installed in the panel back.
Use an AC switching adapter ( AC100V IN DC12V1.5A OUT ) for an electric power supply.
It is usable in the electric power supply which is home-use, going out!!.
The size and the weight: 280x160x65 mm 2 Kg
