Teaching materials for rectifier circuit
 |
■ The order number and the product name:

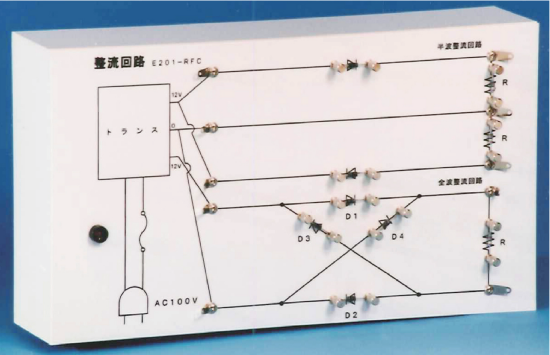

E201e-RFC Teaching materials for rectifier circuit
■ The product description:
It understands the devising of the full-wave rectifying circuit which passes the half-wave rectifier circuit and the complete-cycle electric current that only the half cycle passes an electric current in the experiment.
It is possible to do a corrugated remark if using an oscilloscope.
The electric power supply: 100VAC
The size and the weight: 280x160x65 mm 2 Kg
