Automobile air-conditioner circuit simulator ( air mix door )
 |
■ The order number and the product name:
E051e-AAD

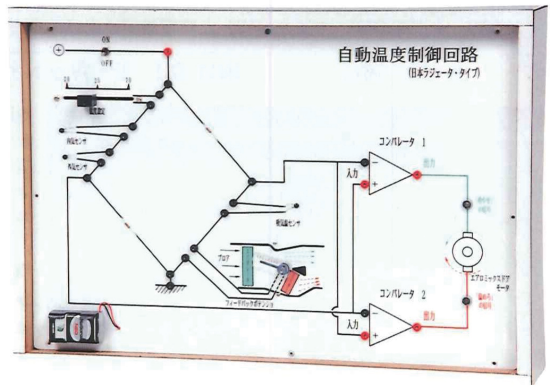

Automobile air-conditioner circuit simulator ( air mix door )
■ The product description:
It is possible to understand in that components such as each resistance, the sensor, the comparator are incorporated inside the circuit diagram in the one to learn the automobile air-conditioner electric circuit of Aero mixture door electromotor , using a circuit tester in the flow of the mega competition which controls the aperture of reading Aero mixture door electromotor with the comparator in the voltage-change which occurs with the temperature change of the transition sensor of the temperature setting and seeing a resistance value and a voltage-change in each condition.
The size and the weight: 340x490 x100 mm 4 Kg
