Common rail diesel engine (cut-away model on a board) Type D



■ The order number and the product name:
D061e-CDI
Common rail diesel engine (cut-away model on a board) Type D

■ The product description:

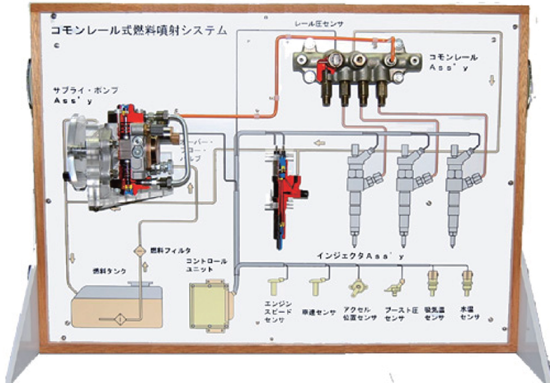

As for this cut panel, the chart of the common gun-rail expression fuel injection device is printed by the plastic panel, uses the component of the real car in the actual pump, and the injector, the common gun-rail Electronics Systems Division USAF Systems Command and so on, applies a cut manipulation, the internal-constitution and the system structure can be understood at the same time, a handle is installed in the supply pump on the panel, the inside of the pump operates when making turn and the architecture of sending a fuel pressurized can be understood.

Size and weight:   900x650x150 mm   30 Kg
