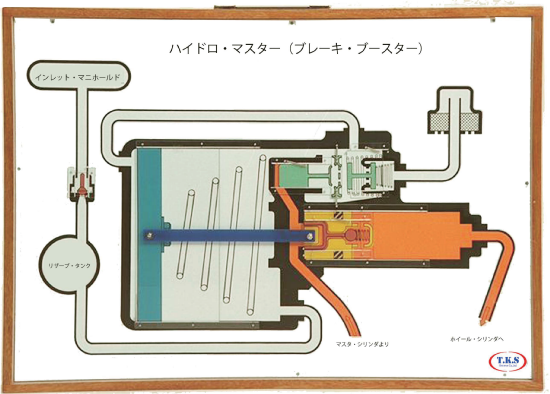

Hydro master Type D
 |
■ The order number and the product name:
D024e-DHD Hydro master Type D
■ The product description:
A diaphragm-spring is pushed when pushing a relay valve piston on the right and the vacuum valve sticks to the relay valve piston.
The aisle of the power barrel cylinder in the left side is opened from the leaving air cleaner from the pauline in the air choke valve when pressing on far the right.
When pushing a power piston on the right, a direct hydraulic piston is pushed by the push-rod and the oil route of the master cylinder and the oil barrel cylinder is cut off by the residual-valve.
Size and weight: 900x650x100 mm 6 Kg
