Hydraulic brake Type D




■ The order number and the product name:
D013e-DOB  Hydraulic brake Type D

■ The product description:

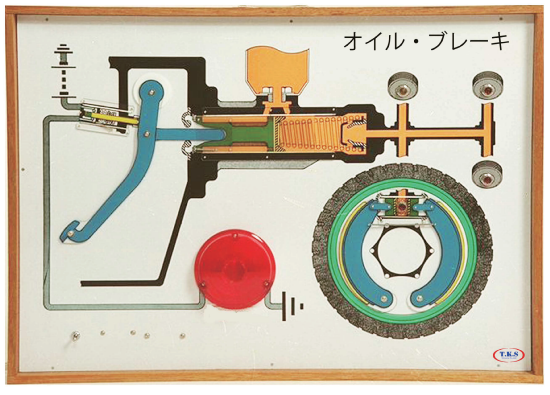

In the one to explain the operating principle of the oil brake, a becoming tail lamp is lit up by on in the electrical switch in the electric switch when pushing an acceptance brake pedal.
It well understands the state to which the landing-ramp of the barrel cylinder, the travelling wheel and the intercylinder lights up one after another, and it the shoe presses a brake drum on and the revolution with brake drum stops at when a piston is pushed and the hydraulic power occurs to the intercylinder.

Size and weight:   900x650x100 mm   6 Kg
The current source: 100VAC ort 220V
