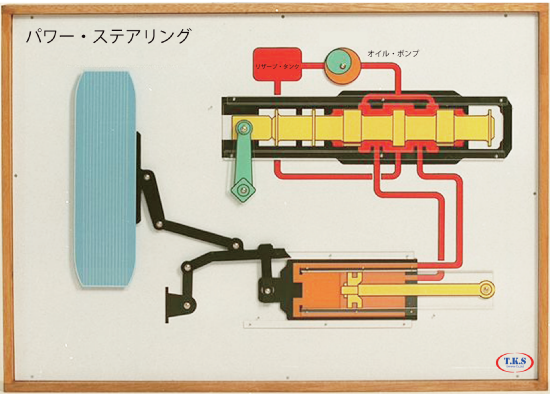

Power steering Type D



■ The order number and the product name:
D021e-DPH  Power steering Type D

■ The product description:
It is possible to describe in moving a power cylinder to either side with the oil which is sent pressurized via the control valve from the oil pump by the actuation of the valve spool, the power piston, the power barrel cylinder and so on and the easiness of the operating principle of the power steering until it is possible to mean a front axle assembly in the conduct by the change of the linkages such as the connecting-roe.

Size and weight: 900x650x100 mm      6 Kg

List of Moving schematic picture
List of steering
