Ignition system Type D
■ The order number and the product name:
D014e-DIG Ignition system Type D
■ The product description:

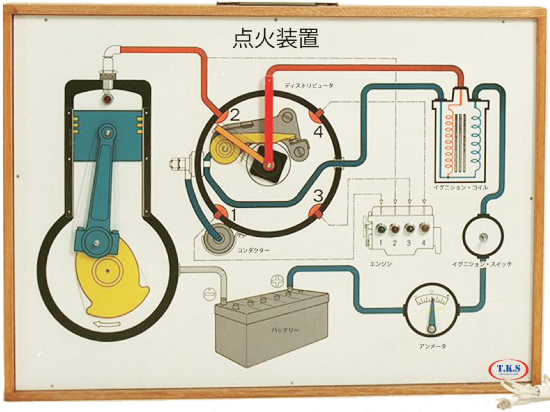

By turning a crank pin in the one to explain the operating principle of the igniter, the switch of the continuing intermittently of the Contact breaker opens and shuts.
Also, a red light is lit up at the time of the combustion-stroke by the burn interior compartment and the landing-ramp lights up in case of firing of the other barrel cylinder, too.
Size and weight: 900x650x100mm 10kg
