Actuation of full-transistor type D



■ The order number and the product name:

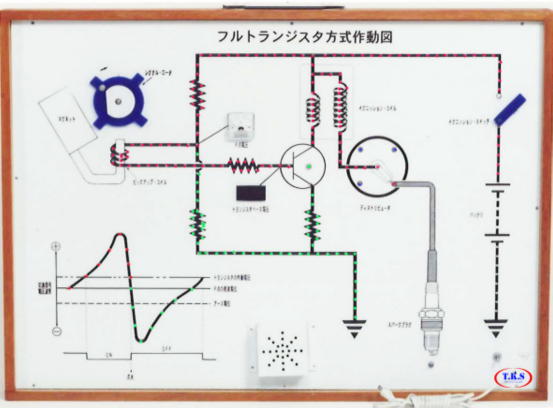

D060e-FTS Actuation of full-transistor type D

■ The product description:
The transition of the creeping move of the bell which is due to the physical relationship of the transition, the signal rotor and the pick-up coil with the creeping move of the light-emitting-diode and the base electrical potential difference of the transistor in the alternating current bell which occurs with distributer's operating in the one to do the description of the フルトランジスタ expression igniter can be easily understood.
There is a voltmeter in the centration point,CP point of the compass, too.

Size and weight: 900x650x10mm  10kg
Power sourse : 100 V or 220V
