Starting system
 |
■ The order number and the product name:

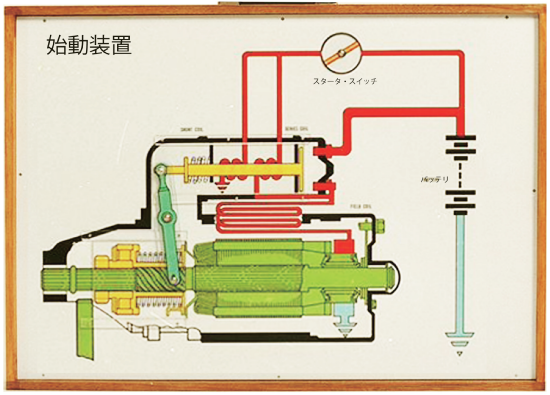

D026e-STS Starting system
■ The product description:
The state that the current from the battery flows through the pull-in-coil, the armature-coil and the holding coil with operating a shift lever, an overrunning-clutch, a pinion, a plunger and so on in the one to explain the operating principle of the cranking-motor, that the plunger is moved to the right side by this magnetic force, and that it presses a pinion through the change-speed-lever and that it meets a ring gear can describe.
Size and weight: 900x650x10mm 5kg
