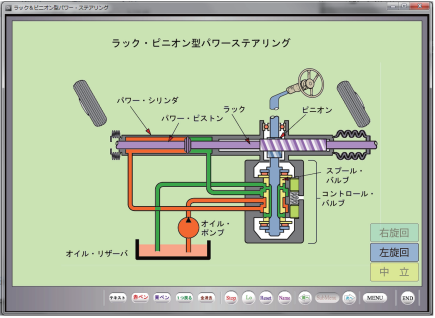

Power steering ( rack and pinion )
 |
■ The order number and the product name:
MZ340e-RPP Power steering ( rack and pinion )
■ The product description:
The contents:
1.The passenger car
2.The cab over type auto truck
3.The four wheels steering system
4.The steering control mechanism
5.The spindle mechanism with the intermediate gear
6.The rack pinion configuration steering system
7.The spindle gear mechanism
8.The cornering-force
9.The excursion at the time of the slewing-motion
10. The under-steer and the oversteer
11.The antiphase and the same phase
12.The slip-angle of the body at the time of the slewing-motion
13. The rack pinion configuration
14.The ball nut configuration
15.The linkage of the axle suspension type
16. The drug link
17.The kind
18.The hydrolic
19.The integral configuration
20.The linkage configuration
21.The rack pinion configuration actuation
22.The vane configuration oil pump
23.The actuation of the flow control valve
24. In addition to the actuation of the pressure relief valve
The CD-ROM system requirements
Microsoft Windows 2000 me xp vista 7
