Common rail fuel injection system



■ The order number and the product name:
MZ260e-CR3  Common rail fuel injection system

■ The product description:
The content:
1.The fuel system,

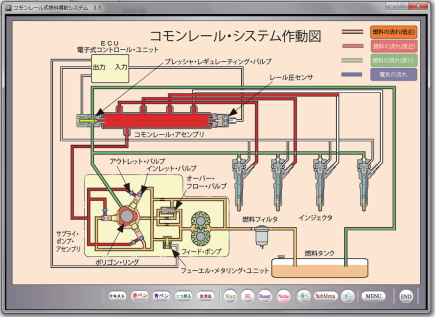

2.The common rail system figure,
3.The arrangement plan,
4.The supply pump assembly structural drawing,
5.The supply pump assembly section view, "
6.The operation of the supply pump,
7.The inhalation of a burning oil, sending it pressurized,
8.The fuel metering unit structure, and the operation,
9.The overflow valve structure and the operation
10.The common rail assembly,
11.The structure of pressure regulating valve, and the operation,
12.The structure of the rail pressure sensor, and the operation,
13.The structure, of the injector assembly
14.The operation of the injector assembly,
15.European Currency Unit ( the electronic type control unit ),
16.The electronic control module system control-diagram, 17.The feature of the sensor
The CD-ROM system requirements
Microsoft Windows 2000, me, xp, vista, 7
