4- bar linkage
 |
‘ The order number and the product name:
A213e-L4S 4- bar linkage
‘ The product description:

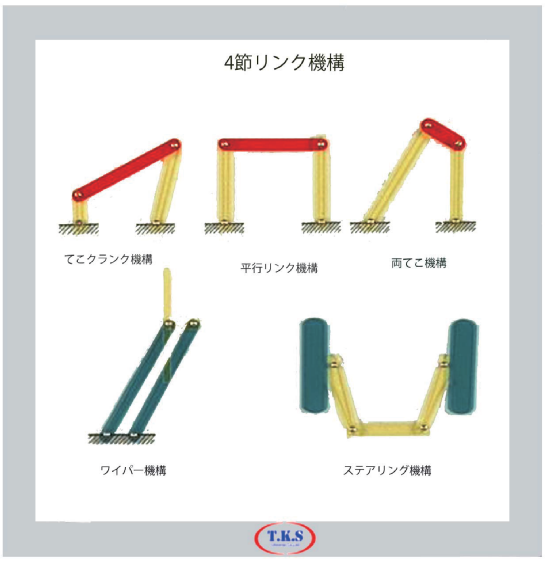

The description of the clause 4 linkage which combined four links can do the description of the linkages which connect a link with different length and change a motive power into a wide range of shapes.
It is possible to do the description of the steering system at the auto car, too, as the application.
Size and weight: 290x290 x 30 mm 1.5 Kg
