Hydraulic brake
 |
■ The order number and the product name:
A013e-TOB Hydraulic break
■ The product description:

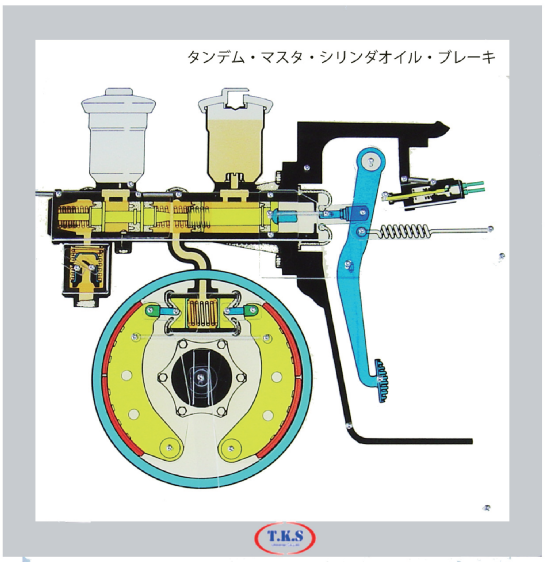

Pistons #1, #2 are connected when pushing a pedal and a movement shoe is forced on the brake drum in the piston of the travelling wheel and the intercylinder.
The actuation of the piston when doing a fluid-leakage to the tandem master cylinder system of being rear, the front, too, can be described.
Size and weight: 290x290 x30 mm 1.5 Kg
