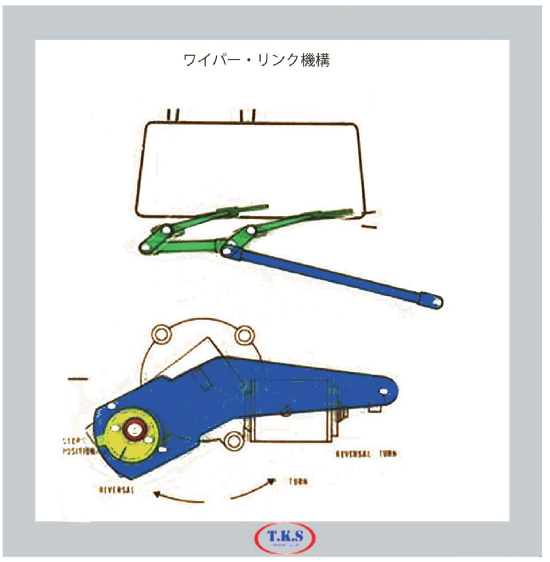

Wiper linkage mechanism
 |
‘ The order number and the product name:
A114e-WMR Wiper linkage mechanism
‘ The product description:
The linkage that the electromotor reverses when the wiper stops by doing a reciprocation to the place where the blade rose by several degrees of the actuation bottom-dead-center during actuation by the actuation of the eccentricity cam which was incorporated into the arm and that the blade always stops at the actuation bottom-dead-center position can describe.
Size and weight: 290x290 x30 mm 1.5kg
