Synchromesh transmission



■ The order number and the product name:
A012e-STM  Synchromesh transmission

■ The product description:

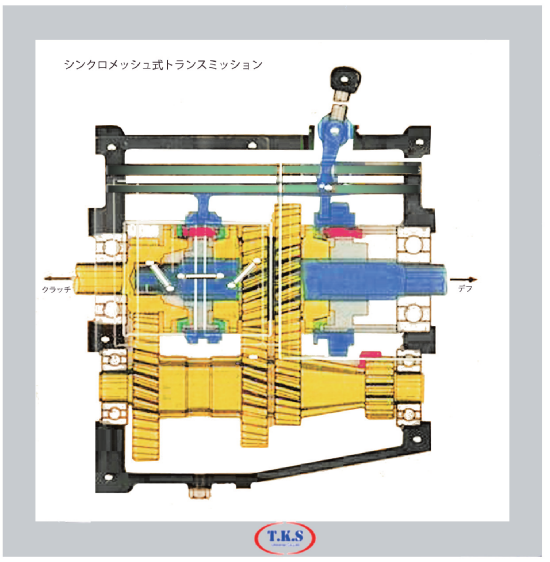

The distance-sleeve and the synchronizer key which meets with the lug are moved by the change-speed-fork and the distance-sleeve which presses a synchronizer ring on the cone Electronics Systems Division USAF Systems Command can describe the state which meets in the spline Electronics Systems Division USAF Systems Command of the gear, moving.

Size and weight:  290x290 x30 mm    1.5 Kg
