Common rail fuel injection system
  |
■ The order number and the product name:
D061-CDI Common rail fuel injection system
■ The product description:

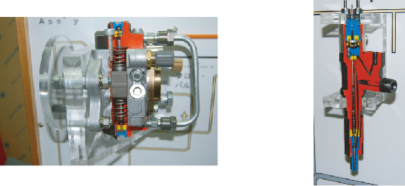

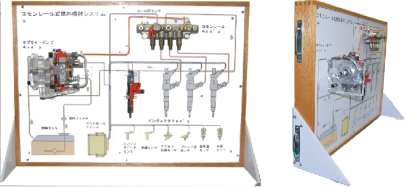

This " the common rail type diesel system cut panel " is the teaching materials that the innards and the system structure can be understood at the same time by applying a cut process, using the part of the real car in the actual pump, and the injector, the common rail brake shield, front part and so on, printing system of the common rail type fuel injection apparatus on the plastic panel.
A handle is installed in the supply pump on the panel, the inside of the pump operates when making turn and the structure of sending a fuel pressurized can be understood.
The size and the weight: 900×650×150㎜ 30㎏
