Hybrid engine
 |
■ The order number and the product name:

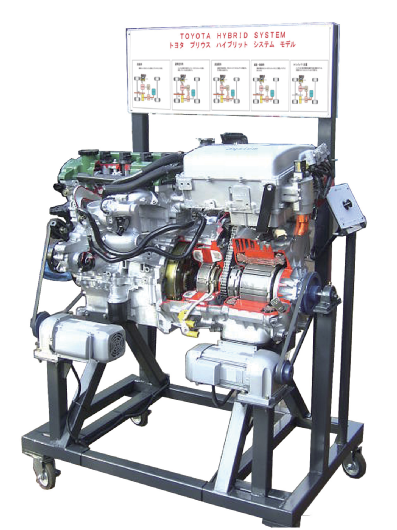

C450e-HYB Hybrid engine
■ The product description:
These teaching materials are the 100 V one of the drive, loading down a metallic stand with the necessary cluttered engine compartment, the electromotor and so on and cutting a mission cluttered engine compartment brake shield, front part when educating Hybrid electric-petroleum car.
It is the cut total vehicle to have made drive with two electromotors.
( The side of the cluttered engine compartment about 1 machine, 1 machine is already for the operation on the side ofHybrid electric-petroleum ).
It is at the operation situation display panel in the back brake shield, front part.
With making light up, it is possible to do of the operation of the real car just like a condition ( the time of the lay-a-patch, the general transit-time, the case of the high-load, the time of the deceleration control and of HV battery charging ) in the check-with-eyes.
The cluttered engine compartment to use is Prius which is made by Toyota.
The method of Hybrid electric-petroleum, the state which is parallel which combined an electromotor by the 1.5L gasoline engine and the nickle hydrogen battery
The one which is called a type
For example, when starting, it chooses an electromotor, the general transit-time chooses a cluttered engine compartment, always chooses the good method of the energy efficiencies in case of acceleration as if to do an electromotor + cluttered engine compartment and runs.
It becomes the system which is.
Also, because it is the total vehicle which is same as the real car, in that each vehicle moving operates the rotary SW which was installed in back, it is possible to do being.
The cluttered engine compartment format, the number of the 1NZ-FXE arrangement cylinders and the water-cooled series four cylinder
The valve format, engine swept volume and DOHC16 valve
1496 cc The electromotor format, the 3CM alternating current synchronous motor ( the permanent magnet type synchronous type electromotor ) maximum output and the cluttered engine compartment
:77 PS / 5000 r.p.m. The electromotor
:68 PS / the cluttered engine compartment of the maximum torque of r.p.m. of 1200 - 1540
:11.7kg.m / 4200 r.p.m. The electromotor
:40.8kg.m / r.p.m. of 0 - 1200
The size and the weight: 1550x1600 x1650 mm 200 kg
Power supply: 220Vor 100 V
