Gasoline engine 6 cylinder electronic control fuel injection systemi full set type
 |
■ The order number and the product name:

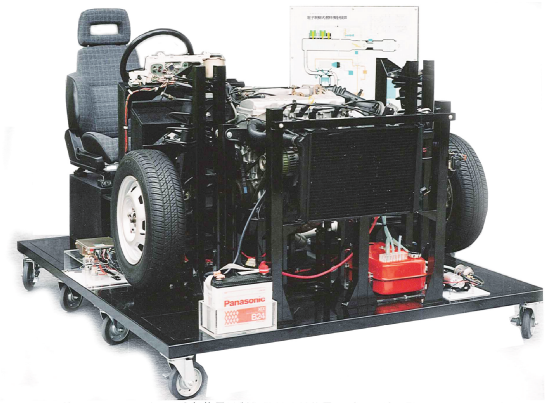

B502e-G6F Gasoline engine 6 cylinder Densei full set type
■ The product description: This cluttered engine compartment bench is full-scale general instructional-aid which was manufactured by the practice teaching of the break-up, the assembly, the maintenance, the maintenance and the work with the general actuation portion of the auto car and so on.
The radiator, the muffler to arrange things for the front parts of 々, the front wheel drive vehicle such as the maintenance and the adjusted cluttered engine compartment, the gear transmission, the spindle mechanism, the brake, the axle pedal, the clutch pedal, the shift lever, the meter panel, the operation pauline in the same way as the real car and to be necessary for the actuation of the cluttered engine compartment
It is set in the metal bench with the caster with the optional accessories of the fuel cell, the dc-battery and so on.
The electronic control fuel injection system can be easily understood by operating piece parts such as the throttle valve of the description board of the electronic control fuel injection system which it is possible to remove, the idle adjusting screw, - the air bulb, the coil.
The check of the self-test system can be done.
It is possible to do gear changing when stepping on the clutch pedal and operating a change-speed-lever.
( Message tape vehicle )
It is possible to do gear changing when operating a change-speed-lever.
( AT vehicle )
By stepping on the brake pedal, the brake can be at a glance understood.
When turning a handle, a spindle mechanism is connected.
The optional accessories: The instruction, the break-up and assembly point book, the spare gasket-packing set, CD-ROM " the electronically controlled type fuel injection device "
The size and the weight: About 2000 × 1800 × 1500 mm 500 kg
