Common rail diesel engine 4 cylindere
 |
‘The order Number and the product name:

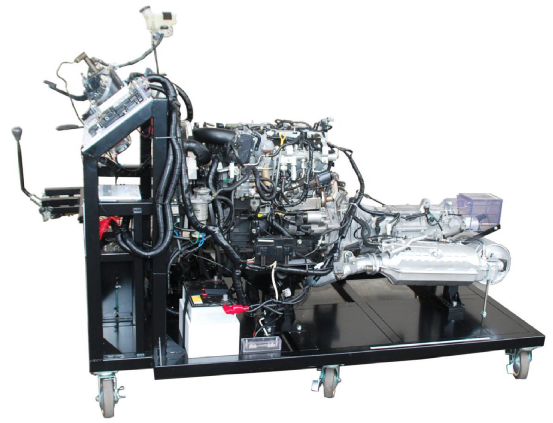

B206e-DCD The Common rail diesel engine 4 cylinders
‘ The product description:
The radiator, the muffler which is necessary for the actuation of the cluttered enginecompartment with this instructional-aid arranging a maintenance and an adjusted clutteredengine compartment in the same way as the real car
It is set in the metal bench with the caster with the optional accessories of the fuel cell, the dc-battery and so on.
1. The fuel injection system is using the cluttered engine compartment of the common gun-railtype.
It is possible to do instruments such as the supply pump and the learning of the common railfuelinjection system because are stuck.
2. Also, DPF ( the black smoke elimination filter ), too, be stuck, it operates a real car and similarDPF and the PM elimination can be done, too.
3. The cluttered engine compartment to use is using the cluttered engine compartment ofcompatible for the new installation specifications since then in 2000.
Because it is using the cluttered engine compartment of OBD2 compatible, with the tester ofOBD2 compatible, it is possible to do the learning of the fail search, too.
4. It is possible for the suspected fail switch ( equal to or more than 10 ) to make a failintentionally and the check terminal ( equal to or more than 40 ) for the signal voltagemeasurement for the diagnosis of fault to establish.
( It is an option article separately ).
5. A gasket set ( one set ) for the servicing-instruction and the arrangement-drawing, theoverhaul of the instruction manual and the cluttered engine compartment manufacturer isattached to the product.
The accessory: The instrument panel kind The adapting for car meter, the Coolanttemperature gauge, the hydraulic pressure indicator,: the tachometer, the ammeter, thediagnosis of fault landing-ramp, the throttle, the ignition key, The diagnosis connector
, the fuel cell, the dc-battery, the radiator, the muffler, the DPF
The optional accessories: The instruction, the break-up and assembly point book, the sparegasket-packing set
The size and the weight: About 2200 ~ 1000 ~ 1400 o 200 kg
It services a used cluttered engine compartment and it adjusts, it washes and it is painting acluttered engine compartment.
The cluttered engine compartment specification which is specified in this catalog, and theformat, the photography are an example.
There is a case to be different from the photography with the kind and the format of thecluttered engine compartment.
( Contact the existence or non-existence of the gear transmission therefore. )

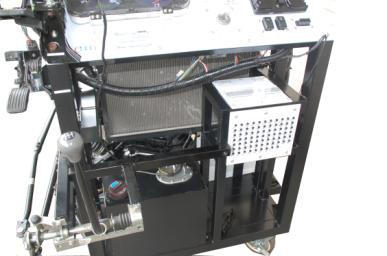

‘The explanation in each brake shield, front part

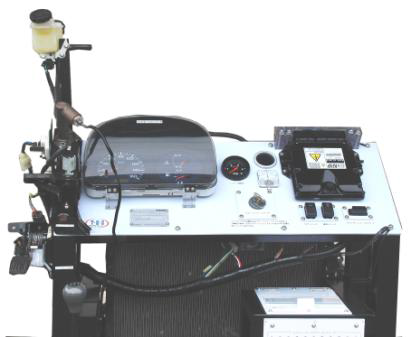

The operating panel brake shield, front part
The meter, the hydraulic pressure indicator, the ammeter, the ignition key, the OBD2 connector,the DPF actuation switch, the throttle, the environmental-control-unit and the relay kind of thereal car are arranged at the operating panel.
A clutch lever and so on are installed according to the specification.
The suspected fail switch panel device ( It is an option article separately ).
At the suspected fail switch panel device, the various troubles such as the elevated watertemperature and the accidental cut of the lamda sensor can be in simulation started.
By causing the fail for which it is difficult to reappear at the real car, it is possible to do thelearning of the diagnosis of fault machine, too.
The check terminal for the signal voltage measurement ( It is an option article separately ).
It is possible to keep a beautiful integrity because it washes and it has processed coating.

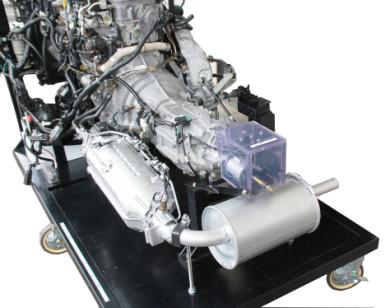

The dc-battery and the fuel cell brake shield, front part
It is set in the solid metallic cradle and the migration and the establishment are possible easily atthe caster with the stopper.
A muffler and a dc-battery, a petrol tank, too, are satisfied with the inside of the cradle.
