Valuve timing Diagram for students




■ The order number and the product name:
L021e-VTD  Valuve timing Diagram for students

■ The product description:
The engine timing of five kinds of paulines ( two kinds for 4 cylinder of, three kinds for 6 cylinder firing-orders ) can be described.
Also, it is possible it is possible to buy the closing-motion time of the inhalation bulb, the exhaust valve.
The understanding deepens by student's using.

Size and weight:5 mm x 130x130   40 g


Valuve timing Diagram for students 10 pcs.set

■ The order number and the product name:

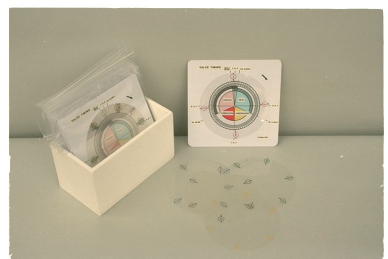

L022e-VTD  Valuve timing Diagram for students 10 pcs.set

■ The product description:
It is 10 stuck sets of the storage retaining-shield.
The engine timing of five kinds of paulines ( two kinds for 4 cylinder of, three kinds for 6 cylinder firing-orders ) can be described.
Also, it is possible it is possible to buy the closing-motion time of the inhalation bulb, the exhaust valve.
The understanding deepens by student's using.

Size and weight: 80 x 150 x 145mm   600 g
